EZ-Align Dial Saw Gauge Alignment System METRIC

$69.95USD $44.95
Model Number: 34-0928-M
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
44.950
Manufacturer: iGaging
Facebook
X
Email
Pinterest
Google+
LinkedIn
MySpace
Digg
Delicious
  • Description

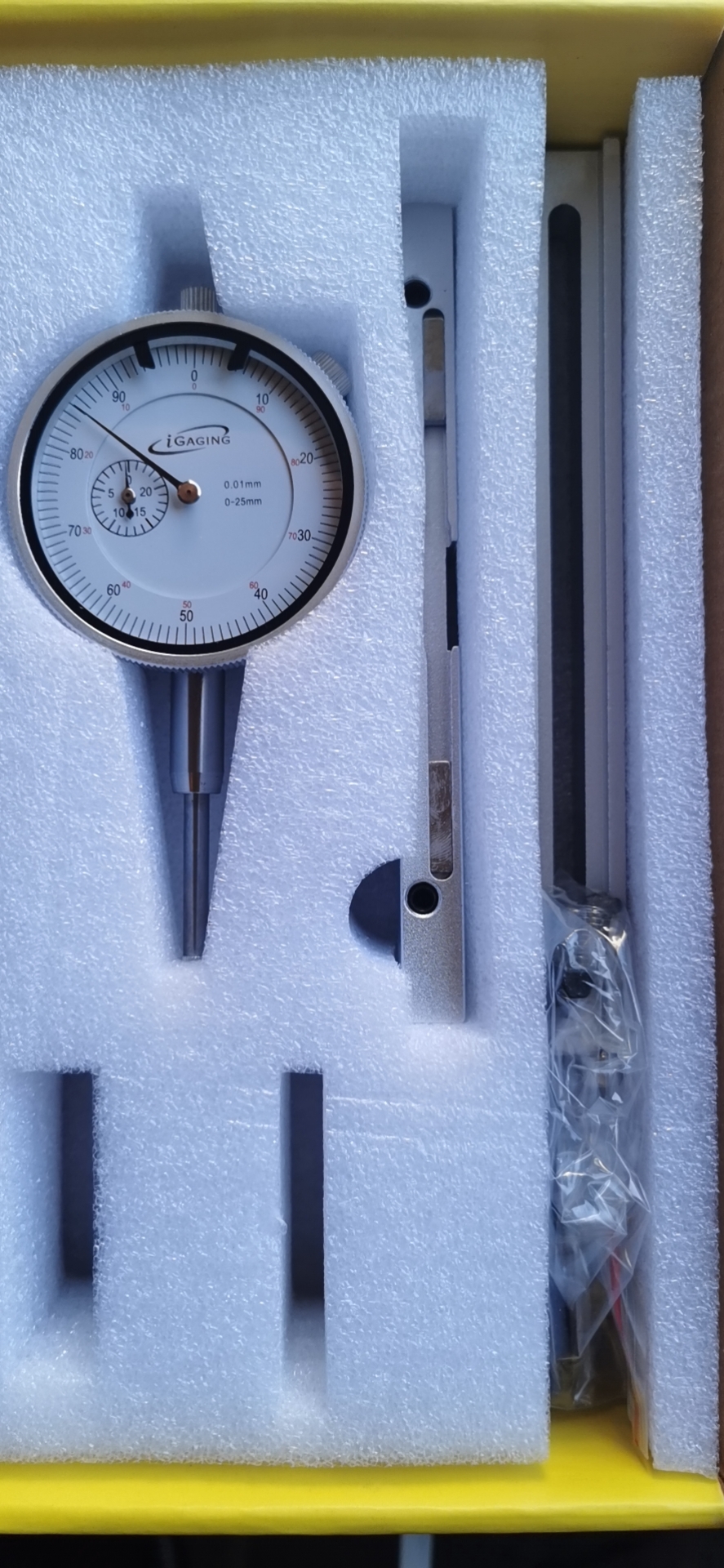

Designed for completing numerous tests in your shop, this analog alignment tool will allow you to test your table saw alignment, fence alignment, saw, router and drill press arbor run out, set jointer knives, saw blade run out and much more. The alignment provides accurate measurements on any steel (cast iron) machine with a standard miter slot (3/8 Inch x 3/4 Inch). The magnetic miter bar holds the tool tight against the edge of the miter slot, while still allowing for sliding movement up and down the miter slot to check fence alignment to miter slot or saw blade to the miter slot. It has a 25mm range, will read to within 0.01mm. The indicator has a 3/8 inch hole on the back mount and can be used with all alignment tools such as height gauges and magnetic base holders that use a standard dial indicator

  • Dial has 2 scales:
  • Outer scale:
  • Mid scale: 0-25mm in 0.01mm incriments
  • Inner scale: .01mm

Features
  • Dual Hands
  • Adjustable Bevel
  • 4 to 11"  variable adjustment
  • 6" adjust-to-fit miter slot bar with strong magnets
  • 9" slide bar
  • Smooth spring plunger
  • Easy to set up and us
  • Guage measurement range 0-7"
  • Accuracy .01mm
  • Dial indicator range 0-25mm
  • Aluminum Alloy construction
  • 4-48 thread
  • 3/8" lugback
Easy to set up and use for:
- Table Saw Alignment
- Saw Blade Flatness
- Fence Alignment
- Jointer Depth
- Arbor Shaft Runout
